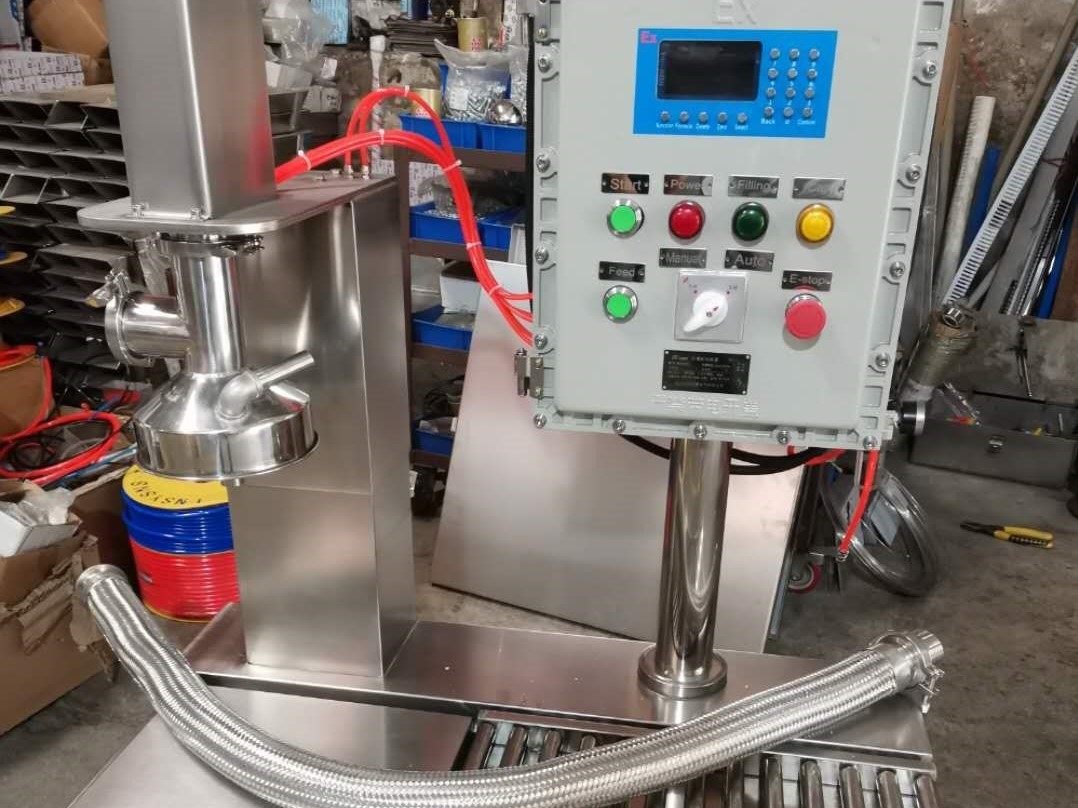

Semi automatic 25L filling machine
5L-30L the height of the barrel and the position of the barrel mouth are adjustable, and the height and position of the barrel mouth are subject to the size provided by the customer. The filling head automatically lifts and lowers. . The base and electric box are 316 stainless steel. The buttons on the electric box are made ofnon-stainless steel. The wheels are made of non-stainless steel. The lifting structure and hand wheel are of cast steel.
Specifications
1. Explosion-proof button operation.
2, digital input.
3. Taiwan Delta PLC.
4. Immediate working status indication.
5, tare detection starts all-round barrel filling.
6, gross weight / net weight (automatic peeling per barrel) and other filling methods.
7, automatic zero tracking, the cumulative number of barrels.
8. The weight error is automatically corrected.
9. Start automatic clearing and power-off protection device.
10. Emergency stop protection device.
11, comes with fault detection
12, dimensions: 1000X650X1500.
13, installed weight: 150KG.
14, filling speed 3-12 barrels / min.
15. Filling value: 50Kg±0.03.
16. Graduation value: 5g.
17, power: single-phase AC220V/50HZ.
