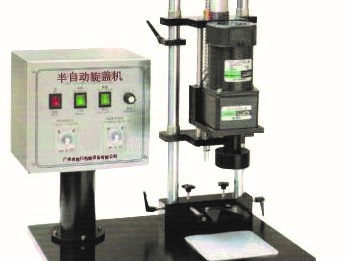

Semi-Automatic Glass Jar Lug Capping Machine

The machine applies mechanical and electrical integration design with compact and rational structure and features convenient in operation and maintenance. It has better compatibility for bottles with different shapes and sizes and it is easy to adjust the capping range. Therefore, the machine is widely used in the capping of round and square thread caps for foods, beverage, medicine, chemicals and cosmetics etc.




Contact Us

Specifications

Capping speed              : 600-700bots/hour
Power supply                : AC220V/50Hz
Max. power                   : 60W
Air pressure                  : 5~6kg/cm2
Capping range               : 20~100mm, adjustable
Bottle height                  : 50~300mm, adjustable
Twisting force                : 5~20NM
Overall dimension         : 620×560×770mm
Weight                           : 40kg
